ANE-16  Nucleic Acid Purification System

QUICK OVERVIEW

Product Code:145458
Brand: Nucleic Acid Extractor
ANE-16

Share this product on social networks

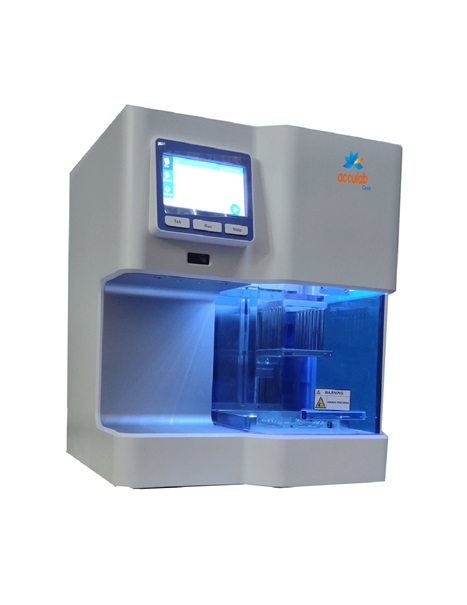

ANE-16  is a miniaturized magnetic bead method nucleic acid extraction and purification instrument, which is developed on the basis of ANE-20 and ANE-32, ANE-16    can accept 16 samples at most simultaneously, maximum sample volume is 1ml



  1. 4.3 inch touch screen, easy to use.
  2. Temperature and protocols can be edited and saved according to different reagent requirements.
  3. Short operation time: 15~40min per run
  4. High yield of nucleic acid with low magnetic bead loss and good repeatability of results.
  5. UV disinfection, avoid cross contamination.
  6. Open system which can apply to different magnetic bead extraction reagent.
  7. APP software (Android system) which can monitor the system in real time through mobile device.
  8. Using the PC software, user operate easily the machine.
  9. Screw rod design which guarantee high operating accuracy; large guide rail design makes the structure more reliable.
  10. With QR code identification function, special reagent can be recognized, no need to program or obtain protocols.
  11. Small volume, suitable for extraction on site.

TECHNICAL SPECIFICATION

Type

ANE-16

Throughput

1~16

Process volume

50~1000ul

Collection efficiency

>95%

Magnetic rod number

16

Purification accuracy

100 copy sample positive rate>95%

Stability

CV<5%

Plate types

96 Deepwell plate

Healting for lysis tube

Ambient temperature~120°C

Heating for elution tube

Ambient temperature~120°C

Operation

4.3 inch color touch screen

Extraction steps

Lysis, Sample binding, Washing and elution

Storage Capacity

more than 100 programs

Pollution Control

UV light

Lighting

Yes

Extension interface

4 standard USB port, built-in SD card

Exhaust

Fan

Power Supply

300W

Dimensions

340×350×410mm

Weight

18Kg
