EMC38

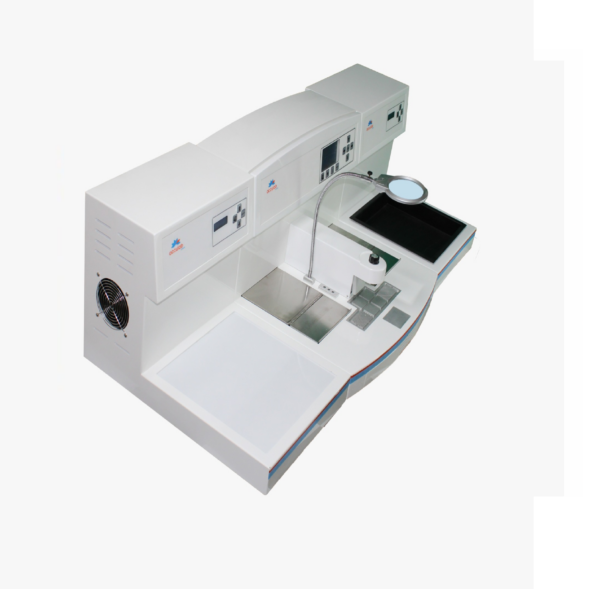

The EMC 38 Embedding Center contains EMC 38-M Embedding Dispensing Console ,EMC 38-C Cryo Console , EMC 38-T Thermal Console and PT 290 Paraffin Trimmer as a complete embedding system .
EMC 38-M
Features
1. Working surface :The tissue embedding cassettes and base mold trays are removable and can be set at different temperatures .
The ergonomic large working surface allows user to process more samples at the same time .The setting knobs offer more precise adjustment of the paraffin flow .
2. All functions on LCD control panle including :
- Temperature of working surface
- Temperature of molds, cassettes, warming trays
- Temperature of paraffin reservoir
3. Weekly automatic On/Off programme .
4. The temperature can be set from ambient temperature to 90deg C and can be adjusted through the control panel
5. The large peltier cold spot is designed to fit both small and large samples . The temperature range is from room temp. to -5 degree .
TECHNICAL SPECIFICATION
Specification:
Nominal supply voltage: 220V±10%, 50hz /110V±10%, 60hz
Nominal power : 1200W
Working temperature(increments 1℃): Paraffin Tank: form ambient to 90 – Cassettes/molds tray: from ambient to 90℃
Working table : from ambient to 90℃ – Refrigerating table: from ambient to -5℃
Forceps Holder: 65℃constant
Capacity
- Paraffin reservoir: 6 Lt
- Cassettes/molds tray: 1.4 Lt( 126 cassettes)
- Dimensions
- Width: 560mm
- Depth: 640mm
- Height: 400mm
- Net Weight: About 26KGS
EMC 38-C
Features
• The EMC 38-C Cryo Console consists an advanced compressor that can cool the paraffin blocks repidly . The Teflon coated surface guarantee a minimum of ice formation and easy clean. Temperature is adjustable from 15℃to -15℃.
EMC- 38 Cryo Console can also be used as a stand alone unit near the microtome .
Specification :
• Supply voltage: 220V±10%, 50hz /110V±10%, 60hz
•Power Draw: 330W
•Working temperature: from 15℃ to -15 ℃ , increments 1℃
•Capacity: 70 cassettes
•Dimension(W*D*H): 390*540*390mm
•Weight: 24Kgs
EMC 38-T
Features:
It can hold any type of cassette , embedding mold and processed tissue specimen .
•Large capacity :2.5L (252 cassettes )
•The temperature could be set from ambient to 75℃ .
•It also can be used as a water bath near microtome
Specification:
•Supply voltage: 220V±10%, 50hz /110V±10%, 60hz
•Nominal power : 335W
•Working temperature: from ambient to 75 ℃ , increments 1℃
•Capacity: 2.5 L ( 252 cassettes)
•Dimension(W*D*H):300*540*390mm
•Weight: : about 7.5kgs
