SPS-2 Semi-Automated

QUICK OVERVIEW

Product Code: 163
Brand: Plate Seale

SPS-2




Share this product on social networks

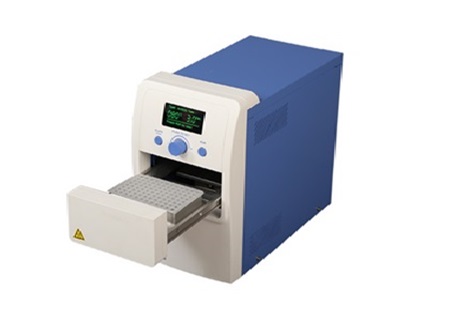

SPS-2  Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer, the SPS-2 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimized to guarantee consistent result, eliminating sample loss. The SPS-2 can be applied in product’s quality control of many manufacture enterprise such as plastic film, food, medical, inspection institute, scholastic scientific research and teaching experiment. Offering complete versatility, the SPS-2 will accept a full range of plates for PCR, assay or storage applications.



Highlights:

1.Format different micro well plates and heat seals

2.Adjustable Sealing Temperature: 80 – 200°C

3.OLED display screen, high light and no visual angle limit

4.Precise temperature, timing and pressure for consistent sealing

5.Automatic counting function

6.Plate adapters allow use of virtually any ANSI micro plate or PCR plate

7.Motorized drawer and motorized sealing platen guarantee consistent good results

8.Compact footprint: only 178mm wide x 370mm depth

9.Power requirements: AC120V or AC220V

Energy Saving Functions

1.When the SealBio-2 is left idle more than 60min, it will automatically switch into stand-by mode during when the temperature of the heating element is reduced to 60°C to save energy

2.When the SealBio-2 is left idle more than 120min, it will switch off automatically for safe. It will switch off the display and the heating element. then, the user can awaken the machine by pushing any button

Controls

Sealing time and temperature can be set by using the control knob, OLED display screen, high light and no visual angle limit.

1.Sealing time and temperature

2.Sealing pressure can be adjustable

3.Automatic counting function

Security

  1. If a hand or objects stuck in the drawer when it’s moving, the drawer motor will automatically reverse. This feature prevents injury to the user and the unit

2.Special and smart design on the drawer, it can be detached from the main device. So user can maintain or clean the heating element easily

TECHNICAL SPECIFICATION



Model



SPS-2

Display

OLED

Sealing temperature

80 ~ 200℃ (increment of 1.0 ℃)

Temperature accuracy

±1.0°C

Temperature uniformity

±1.0°C

Sealing time

0.5 ~ 10 seconds (increment of 0.1s)

Seal plate heights

9 to 48mm

Input Power

300W

Dimension (D x W x H)mm

370×178×330

Weight

9.6kg

Compatible Plate Materials

PP (Polypropylene)

PS (Polystyrene)

PE (Polyethylene)

Compatible plate types

SBS Standard plates, Deep-well plates

PCR plates (Skirted, semi-skirted and no-skirted formats)

Heating Sealing Films & Foils

Foil-polypropylene laminate

Clear polyester-polypropylene laminate

Clear polymer

Thin clear polymer
