TR – Series(Ultraviolet products)

Product Code:1012
Brand: Ultraviolet products

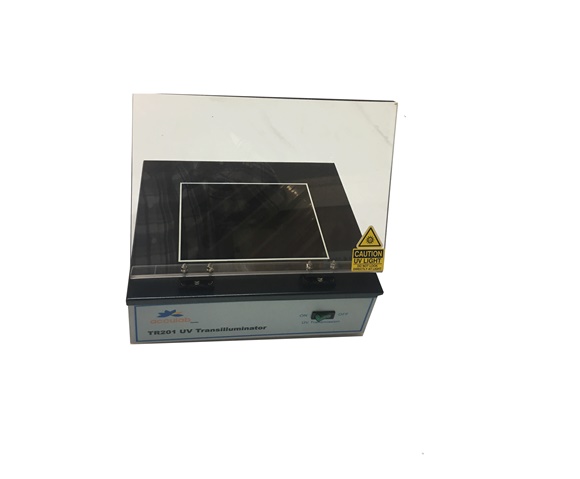

TR – Series

Description

Features:

  • Acculab transilluminators are suited for the visualization of fluorescent signals as well as for their documentation.
  • The high  transparent UV protective screen. Can open and close to any angle ,safe and convenient to operation.
  • UV filter glass, quartz ultraviolet lamp, long service life, light uniform
  • Accomodate single, dual wavelength or UV/ White
  • Reduced electrical consumption
  • Unlimited filter life expectancy for 254nm, 312 nm and white light
  • Ondulex® reflector
  • High UV output
  • Stainless steel frame

TECHNICAL SPECIFICATION

Specifications :

Model

TR201

TR261-312

TR261-254

TR261-365

TR262

TR262M

TR262S

TR15UV/ WHITE

Filter size  mm

150×200

210×260

210×260

210×260

210X210

210X210

210X210

150x200UV/ 150X200 White light

Wave length

nm

312

312

254

365

365 / 254

365 / 312

254 / 312

312/white light

No. of tube watt

4×8

6×15

6×15

6×15

6×15

6×15

6×15

6×15

Dual intenisty

High 100% & low 70%

High 100% & low 70%

High 100% & low 70%

High 100% & low 70%

High 100% & low 70%

High 100% & low 70%

High 100% & low 70%

Input Voltage

220-volt

220-volt

220-volt

220-volt

220-volt

220-volt

220-volt

220-volt

Frequency

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz

50 Hz
