VDC-Series

QUICK OVERVIEW

Product Code: 1474
Brand: Colposcope

VDC-Series


Share this product on social networks

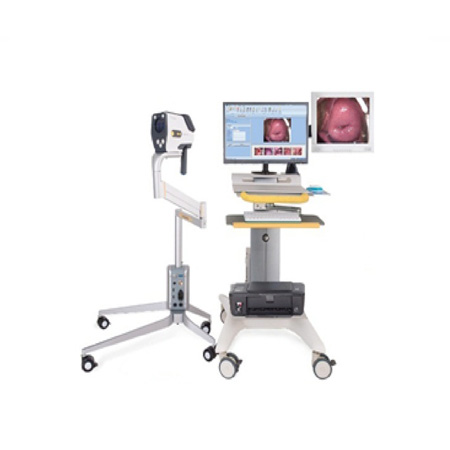

Digital Vagina Colposcope System Includes:-

A) High resolution CCD Camera

  • 1.HD Colposcope Camera and bracket
  • 2. Wireless remote controller
  • 3. Foot Switch
  • 4. USB Cable
  • 5. HD video Cable
  • 6. Power Cable

B) Software and HD  CAPTURE CARD :-

  • 1. Easy to operate
  • 2. Storage and retrieval of patient information
  • 3. Can capture images, video, audio
  • 4. Report shows biopsy tissue
  • 5. Can be made into a DVD or CD
  • 6. Easy data export or copy
  • 7. Report output format diversification

C) Medical Trolley

  • Height from 90cm to 100cm (10cm adjustable)
  • Material: Aluminum Alloy and ABS
  • 4 inch soundless wheels

D) Computer and Printer

  •  1. 22 inch LCD Display
  • 2. Computer case
  • 3. Keyboard and mouse
  • 4. Color  printer

Specification

Type VDC-400

VDC-800

VDC3200

Camera

1/4˝ SONY CCD

1/4˝ SONY CCD

1/2.8˝ SONY CCD

Total pixels

440.000pixels

800.000pixels

3,270.000pixels

image size

720×5761

720x576P

1920x1080P

Scanning system

Interlaced scanning

progressive scanning

progressive scanning

Frame rate

(720×576)50i

(720×576)50p

(1920×1080)30p

Light Source

High Brightness White LED Cold  Light Source

SNR

≥50db

Video output

CVBS:1.0Vp-p(75),y/C˝

Y/Cb/Cr 4:2:2 output through SDI video signal

Horizon resolution

≥ 600lines

≥ 600lines

≥ 1080lines

Lens
Focus(Zoom ratio) f=3.9(wide end)~85.8mm

(far end)

f=3.4(wide end)~1224mm

(far end)

f=4.7(wide end)~94mm

(far end)

Focusing Way

Fast Automatic Focusing Or Manual Focusing ,Or By Software interface

Objective Distance

30cm – 50cm

Operation
Dimming

Speed Loop Stepless Dimming

White Balance

Automatic white Balance And Manual white Balance (Electronic Filtering)

Magnification 22xOptical ,10xDigital

36xOptical,12xDigital

20xOptical ,12xDigital

Image Freeze

Foot Button, Software ,Wired Remote control

Communication

VISCA RS-232C Baud Rate:9.6kbps,19.2kbps,38.4kbps

Wired Remote Control

Zoom ,Focus Far ,Nearly Coke ,Dimming ,White Balance ,Electronic Filter .Freeze capture,3.5-inch Display

Working  Environment
Working Humidity / Humidity

-10ºC~+50ºC  /20%-90%RH

Storage Humidity / Humidity

-20ºC~+60ºC  /20%-95%RH

Notes

*3.5˝ Screen is Alternative component
